The pallet Command line:
This pallet enables you to use the keyboard to create objects in your drawing:

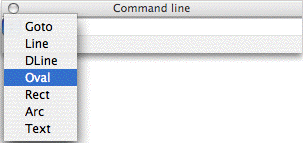

It breaks up into a local menu on the right and an editfield. | |
While clicking on the local menu, you reach the list of the commands available. Goto allows a displacement without layout. Line adds a line between 2 points in absolute co-ordinates. DLine adds a line into relative since the current point. Oval, an oval. Rect, a rectangle. Arc, an arc. Text, a text. |
|
Under the editfield, RealCADD recalls you the parameters to be given for the selected command. The parameters are separated by a space. The parameters between [ and it ] are optional. The use of the local menu is not obligatory. You can also type the command with the keyboard. In fact the first letter is enough. |
