Rapid seen of RealCADD
Available at the same time for Windows, Mac OS X and Linux,
RealCADD is developed on Macintosh using REALBasic, object-oriented
This development on Macintosh is the pledge of a simple and intuitive use including under Windows.
In RealCADD, all the objects of drawing can be accessed, edited and modified easily.
For that, RealCADD has :
- A menu's bar which
adapts to the situation.
If no object is selected, some menus are deactivated.
- A pallet of tools : of which some with multiple choice: who appear at the time of an overflight of the cursor.
- A pallet "Scripts",
- A pallet to choose the attractions, in deployed version: or minimized:
- A pallet of Attributes, thickness and type of line, color, bottom…:
- A pallet of Text allowing the choice of the police force,
- A pallet to edit the objects:

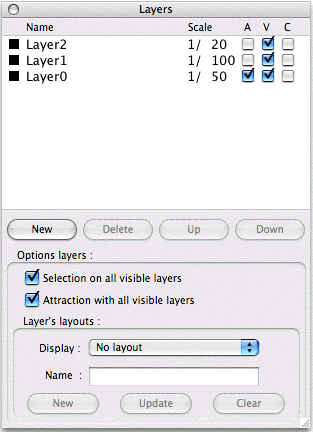

- A pallet "Layers", deployed : and minimized:
- A pallet indicating the position of the mouse: according to the current scale.
- A library:
- A line of command: for the addicts of the keyboard.
Using RealCADD is very easy :
- Select a drawing tool by clicking on it.
- Move the cursor where you want on the drawing's window.
- Press the mouse's button, drag the mouse and then let go of the mouse's button when the object is drawing like you want.
This is valid for the simple objects, lines, rectangles, ovals and for the beginning of the objects more complex than one finishes by clics and moves successive.
With RealCADD, you can choose the drawing mode, either clic and drag, or clic and clic.
Automatically, the co-ordinates of the traced object are displayed in the edit pallet :
We will further see how to modify these data.
|RealCADD has a mode of
assistance, on Windows and Mac OS X, for all the windows and pallets,
by posting of small windows (HelpTag) as opposite for the Arrow tool
which one discovers thus the short cut keyboard “A”.
These windows are posted when the cursor remains a few moments without moving and click with above a button, or an icon…
Note that the keys Alt, Shift and Ctrl can modify the behavior of many tools and bring additional possibilities.
We see here that the Arrow tool used with the key “Alt” makes it possible to move of the points. (See further)
